Adopt the unique and novel design of straight line feeding way. The machine introduces foreign advanced technology and production process, the equipment performance is stable and reliable. Adopt "PLc" programmable logic controller to realize the integration of machine and electricity. The ma...
Performance feature:
* Adopt a unique and novel design of straight-line feeding mode.
* The machine introduces foreign advanced technology and production process, the equipment performance is stable and reliable.
* Adopt "PLc" programmable logic controller to realize the integration of machine and electricity.
* The machine adopts linear feeding, the length of the package is not limited.
* This machine has advantages in speed and connection compared with the Tong side feeding machine
* Adopt the specially designed pair knife, the sealing line is firm, not crack, not easy to stick the knife.
* Using imported photoelectric, accurate positioning.
* Imported original conveyor belt, durable, and increased frequency converter control belt transmission speed.
* Humanized design of the control box, easy to operate.
* Three sets of horizontal photoelectric detection can be used for different products.
* When cutting, the back end is equipped with a pressing device, which will not shift the lighter packing items.
* According to the packaging requirements of the product, the vertical double sealing and cutting system can be installed to do fully closed PE heat shrinkable packaging.
Application area:
Suitable for cans, glass bottles, beer, mineral water and other large quantities of automatic shrink packaging items, but also used in wood, steel ceramics, household appliances, computers and other industries.

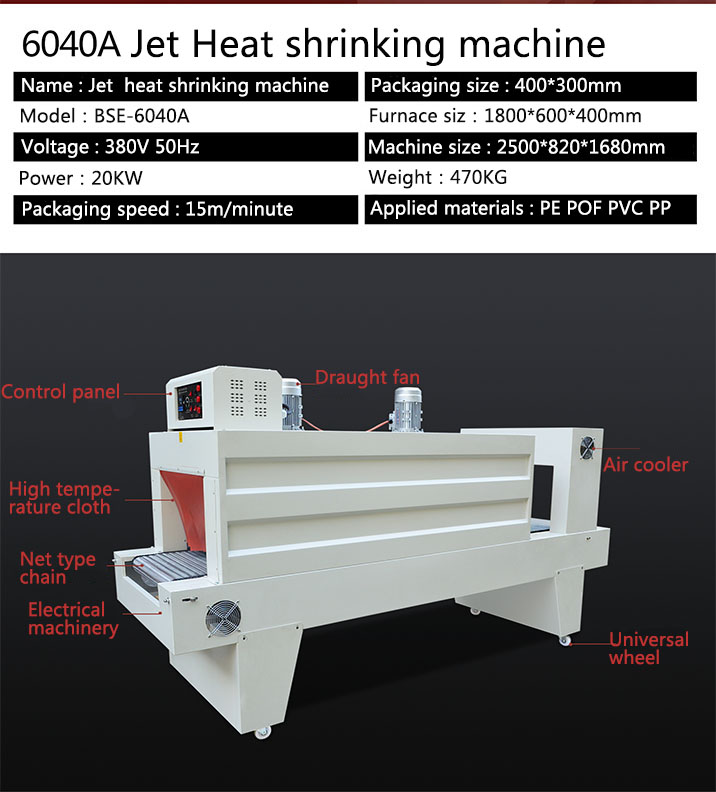

Performance characteristics of adaptive shrinking machine BSE-6040A:
* Adopt imported double air transport motor, so that the hot air in the furnace chamber is evenly distributed, and the shrinkage effect is more beautiful.
* Adjustable hot air diversion circulation structure in furnace chamber, more energy saving equipment
* Adopt solid steel rod outsourcing imported silica gel tube, chain rod type conveying silicone durable.
* The whole machine USES Taiwan delta frequency conversion to control the transmission speed, stepless speed regulation.
Technical parameters:
model | FL-7030AF |
power source | 110/220V 50/60HZ |
power | 2KW |
seal aize | ≤700*300mm |
air source | 6.0kg/cm³ |
feed height | 850±50mm |
sealing temperature | 0-300°C |
packaging speed | 8-22件/min |
machine weight | 465kg |
machine size | 1650*920*1895mm |
