Two large power air transport motors ensure large circulating air volume and uniform temperature in the furnace chamber. Transmission adopts original high quality inverter control, stepless speed regulation. Stainless steel heater has fast heating and long service life. Planetary reducer and...
Performance feature:
* Adopt German advanced technology, and its main accessories are all adopted well-known foreign brands;
* Stable performance and long service life.
Application area:
It is suitable for all kinds of bottles such as soda can, mineral water, beer, glass bottle, soft packing, beverage and so on

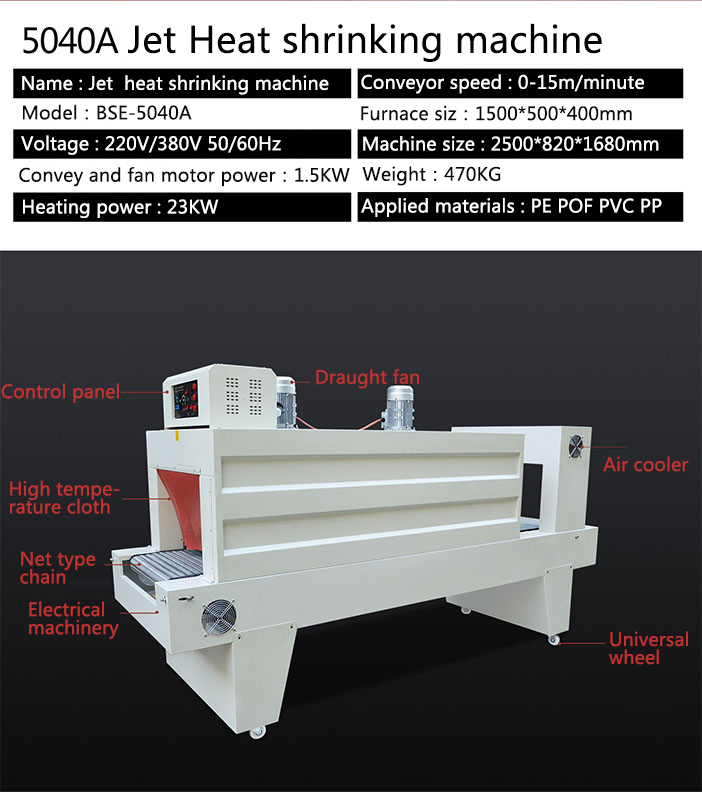

Performance characteristics of adaptive shrinking machine BSE-5040A:
* Two large power air transport motors ensure large circulating air volume and uniform temperature in the furnace chamber.
* Transmission adopts original high quality inverter control, stepless speed regulation.
* Stainless steel heater, fast heating and long service life.
* Planetary reducer and high-power motor ensure smooth transmission and no jitter.
* Super large cooling fan for rapid cooling and setting after thermal shrinkage.
* Both ends of the furnace mouth are equipped with heat insulation baffle and protection plate to prevent heat loss.
* Original high temperature resistant thermal insulation curtain, greatly reducing heat loss.
* Available in a wide range of normal and compact sizes and packed in small packages.
* Casters can be moved freely at the bottom of the machine, with bottom Angle bolts, can be used with different heights of production line
* Specially designed air duct system to ensure the appearance of the package.
Technical parameters:
model | FL-5038 |
voltage | 220/240V 50/60HZ |
power | 1.8KW |
packaging speed | 0-8bag/min |
seal-cut time | 0.5-1.5s |
contraction time | 0-0.6s |
weight capacity | 25kg |
film width | ≤500mm |
packing film thickness | 0.03-0.25mm |
boundary dimension | 450*270*350mm |
machine size | 1020*830*1980mm |
