Markem X40 printer is fixed on packaging machines to print date or batch.

Main Features

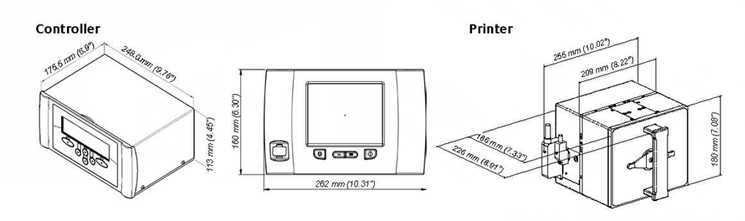

The main components of the SmartDate X40 are as follows:

- Printer body unit containing drive system and thermal transfer printhead.

- Printer body cassette with ribbon supply and waste take up.

- Controller unit containing main operation PCBs and User Interface.

- Connecting cable for printhead power and control.

- Connecting cable for External I/O signals.

- Air supply connections for printhead operation.

- Encoder for substrate speed tracking

High-performance printing

1) Imperccable thermal transfer print quality throughout the roll;

2) New resin ribbon producing codes that do not rub off or smudge;

3) Improved print speed up to 150 packs a minute with a 10mm two-line date code;

4) No manual adjustment requirement required from the first print to the last of the roll.

Print Sample:

Apart from Markem X40 printer, we also suply the realted products, including Continuous or Intermottent Bracket, 32mm printhead on Markem X40 printer, TTO ribbons in Width 33mm length 600m, 500m, 550m, 450m, ect.

For bracket, it can be customized.

You can advise the length of bracket you need.

Usual length are 400mm, 500mm, 600mm, 800mm, 1000mm;

We can produce the bracket in different length according to your requirements.

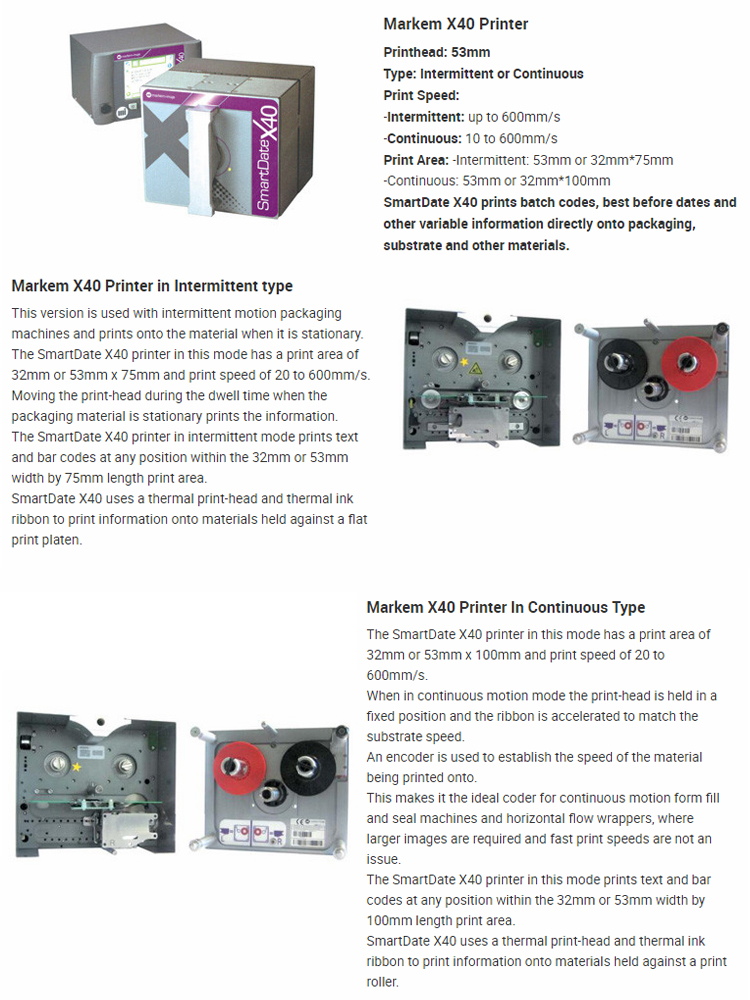

SmartDate X40 is a small easy to use electronic coder. The two models available are designed to be suitable as a direct replacement for many different methods of coding.

SmartDate X40 consists of a printing device and a control device with an operator inter-face control panel or an OEM Integrated controller.

The spare parts:

Other coding machines are optional.

Please contact us and tell us what products you want to pack. We will recommend the most suitable machine for you.
