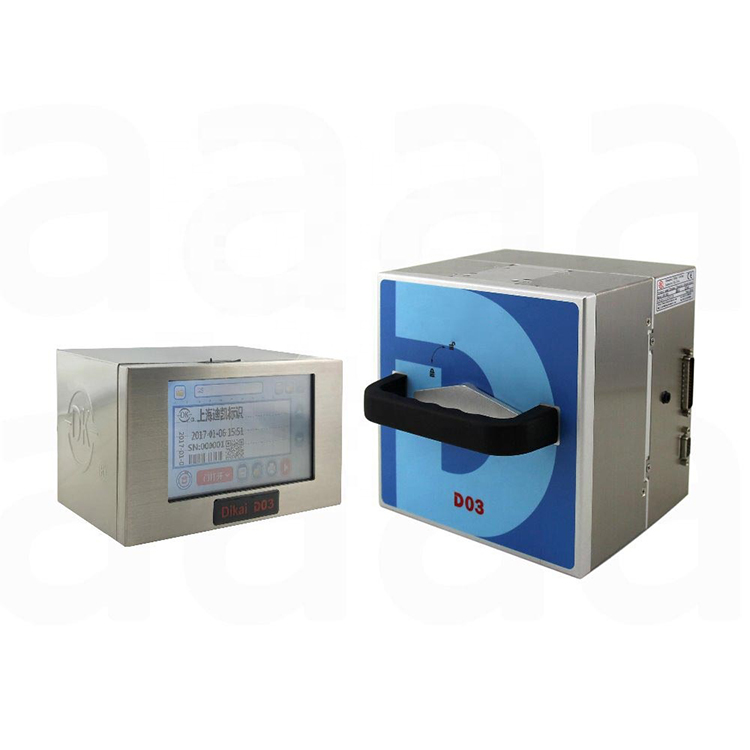

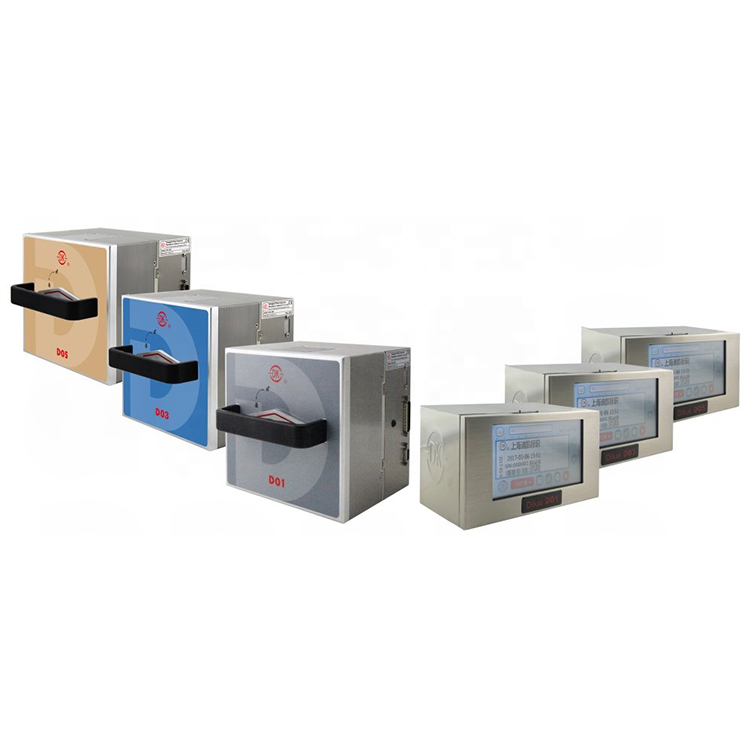

DK D03 Thermal Transfer Overprinter/ Coding Machine
D03 is a small easy -to -operate pnuematic coder, own designed, adopting advanced thermal transfer technology.
D03 uses 300dpi printhead to print bar codes, QR codes, best before dates, real time, graphics, pictures, logos and other variable information directly onto packaging, substrate and other materials. The size, position and content of information can be fixed or altered at the D03 user interface.
Printing Capability
•Ribbon width: 22- 33mm
•Message area: max 32mm (w) x 100mm (l)
•Maximum ribbon length: 500m
•Print speed: intermittent motion mode - max 300ppm
•Print speed: continuous motion mode - max 36 meters/minute
•Ribbon colors – black, white, etc...
Programming
•Coder supplied with a range of standard code templates
•Promark Pro for D03 & D05 designer software
•Auto best before date calculations
•Flexible date/time formats
•Scaleable text including rotation, mirror and inverse printing
Installation & Print
• Patented long life mechanical design, almost needs no maintanence |
D03 THERMAL TRANSFER OVERPRINTER Features
Cost-effective

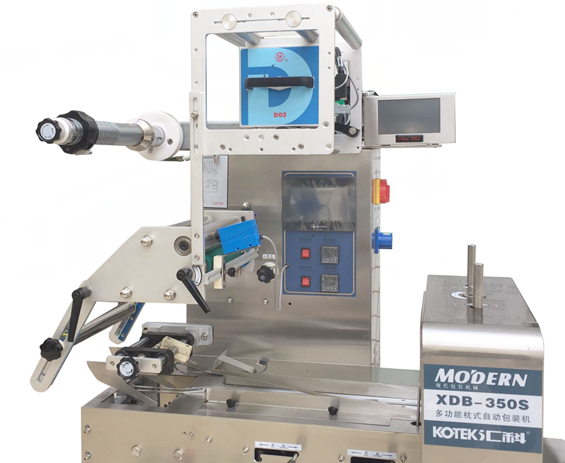

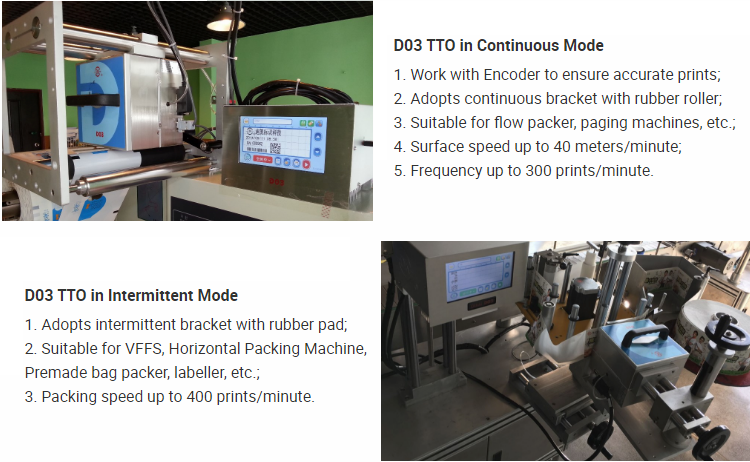

* Print Intermittently or continuously from one unit, thus can be applied to both continuous and intermittent packaging machines
*300DPI; Kyocera printhead; high quality prints.
*Largely reduce the print cost
High performance
*Support all kinds of printing fonts, date formats, variable numbers, serial no. bar codes, image etc.
*Support various input and output connections
*Support various reversal and mirror prints

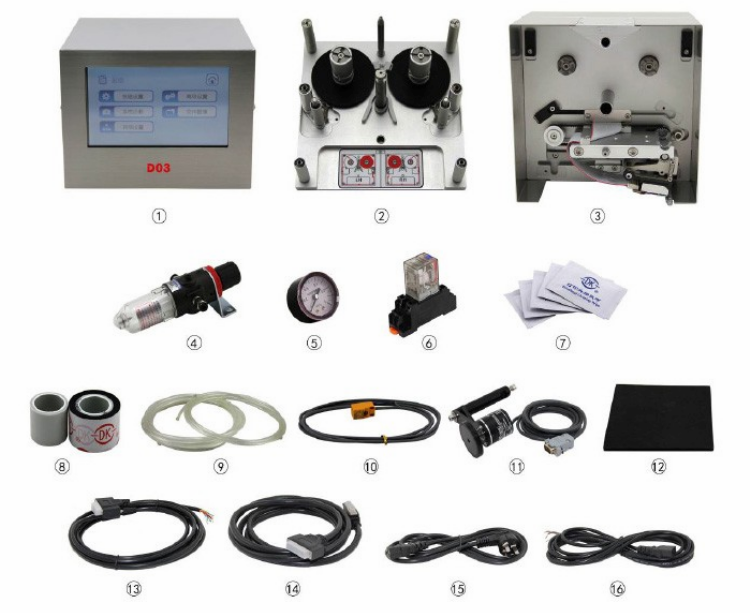

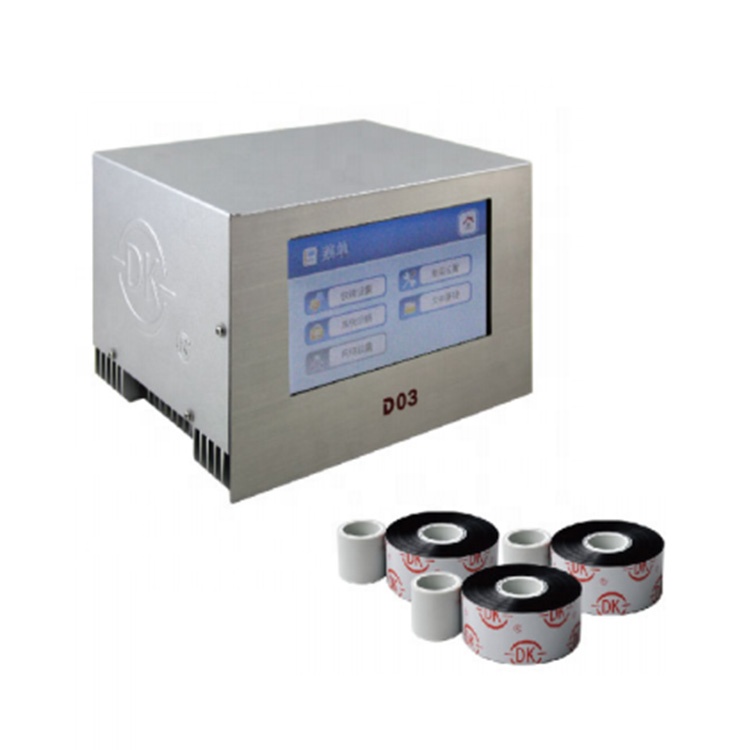

D03 packing list:
1. Controller Box | 9. Air Pipe |

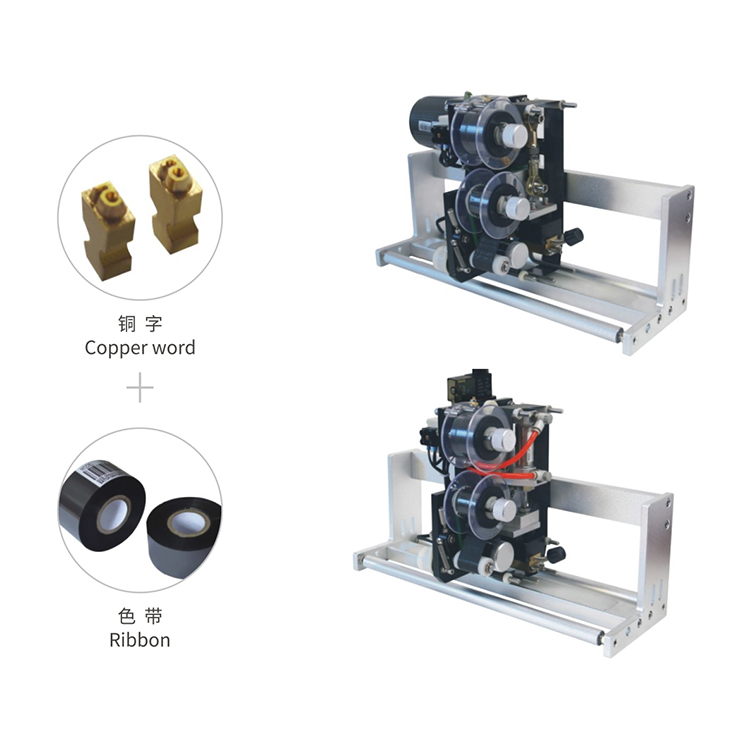

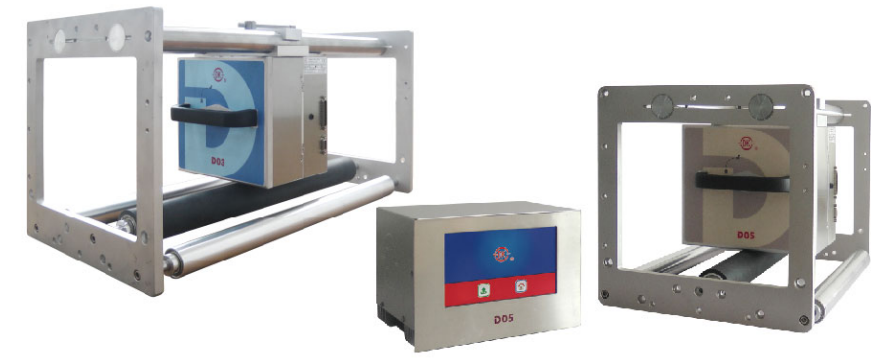

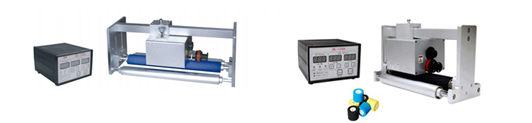

Related products:
Please contact us and tell us what products you want to pack. We will recommend the most suitable machine for you.
SYSTEM SOLUTIONS IN THE FIELD OF PACKAGING MACHINE
DESIGN CUSTOM THINK TANK MANUFACTURERS
Packaging & Shipping
Print Head | 32mm, 300DPI | Power | AC110~220V, 50/60Hz, 150W |
Print Area | Intermittent-32mm*60mm | Environmental Operating Temperature | 0~40°C |
Continuous-32mm*100mm | Relative Humidity | 10%~95% ( no condensing) | |
Ribbon Size | W-33MM, L-600(Max.) | Air Supply | 6bar/90PSI(MAX) dry |
Print Frequency | Intermittent:up to 450PPM | Weight | Printer: 8kg; Controller: 2kg |
Surface Speed | Continuous:up to 36 meters/minute | Dimension | Printer: 188*190*180mm; Controller: 175*235*110mm |
