* Purpose built for installing on continuous automatic packaging machine, speed up to 300ppm *Support various signal modes, ie. PLC, NPN, PNP etc. * Different print mode for option: Automatic track & Fix delay *T-shape bracket, easy to install; simple operation

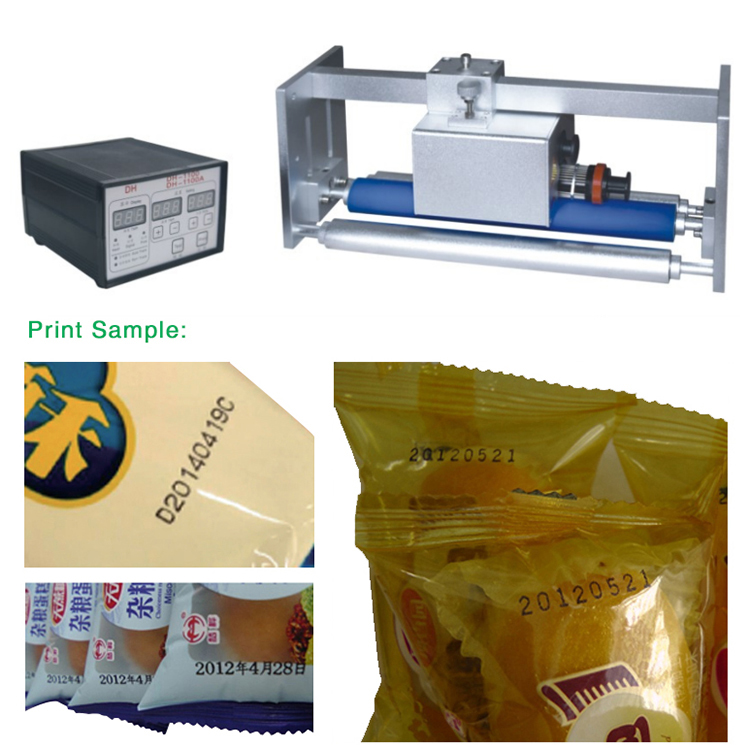

DH-1100 Ink roll coder
* Most widely used coding machine in the world at present
* Adopt technology, ensures the stability and clarity of the prints
*Adopting the updated temperature control system, longer service life time.
* Warranty period up to 15 months.
*Almost 0 after-sales needed according to record
DH-1100 Coding machine Installation
* Purpose built for installing on continuous automatic packaging machine, speed up to 300ppm
*Support various signal modes, ie. PLC, NPN, PNP etc.
* Different print mode for option: Automatic track & Fix delay
*T-shape bracket, easy to install; simple operation
Working Mode 1. The Brass letters contact the Hot Ink Roll and get the ink; |

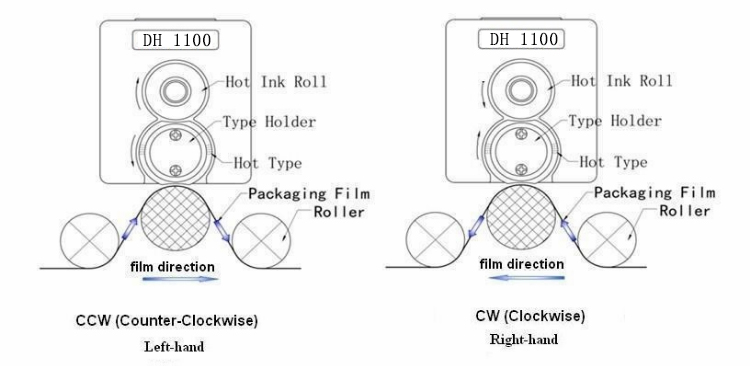

Left/ Right Hand Option Refer to below images, depend on the film direction. Or you can ask colleague for details. |
IQC-IPQC-Outgoing Q.C is strictly executed.
To ensure every DH-1100 Automatick Ink Roll Batch Coder Machine you get is up to standard, we test them at least 48 hours before leaving warehouse.
Machine installation dimension drawing: Printer mounting dimension drawing:

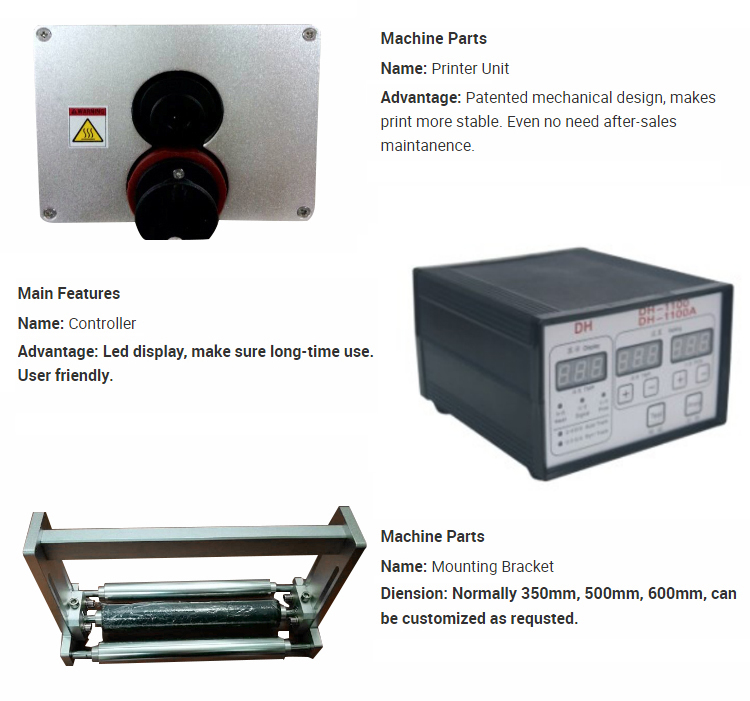

Standard accessories:
Printer | *1 set |
Control box | *1 set |
Installation bracket | *1 pc |
Standard English copper character | *1 box with a tweezers(you can contact us to customize the copper character) |
Printing wheel rack | *1 pc |
Printing ink wheel rack | *1 pc |
Power cord, data line | *1 set |
Ink wheel for testing | *1 piece(Ink wheel is a consumable and needs additional purchase.) |
Adjust tool wrench | *1 set |
Installation fasteners | *1 set |
Other coding machines are optional.
Please contact us and tell us what products you want to pack. We will recommend the most suitable machine for you.
SYSTEM SOLUTIONS IN THE FIELD OF PACKAGING MACHINE
DESIGN CUSTOM THINK TANK MANUFACTURERS
Packaging & Shipping
Package:
Normally in standard export carton packing, can be customized as requested;
Delivery: 1-2 weeks after order confirmation.
Technical Parameters | |
Model | DH-1100 |
Motive power | Friction |
Power supply | 220V/50-60HZ |
Power | 160W |
Printing speed | 350time/minute |
Font size | Arabic numerals,Chinese or English,T tipe,8PT,9PT 10.5PT(2mm,2.5mm,3mm) |
Supplies | Ink wheel |
Printing area | 5 rows with no more than 15 characters per row |
Weight | 11Kg |
