Model: BS-4522N

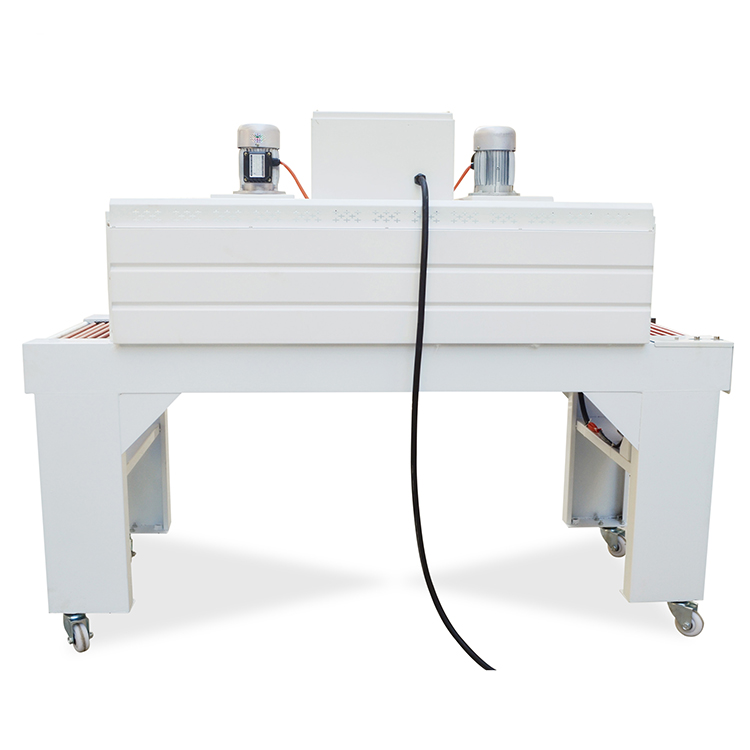

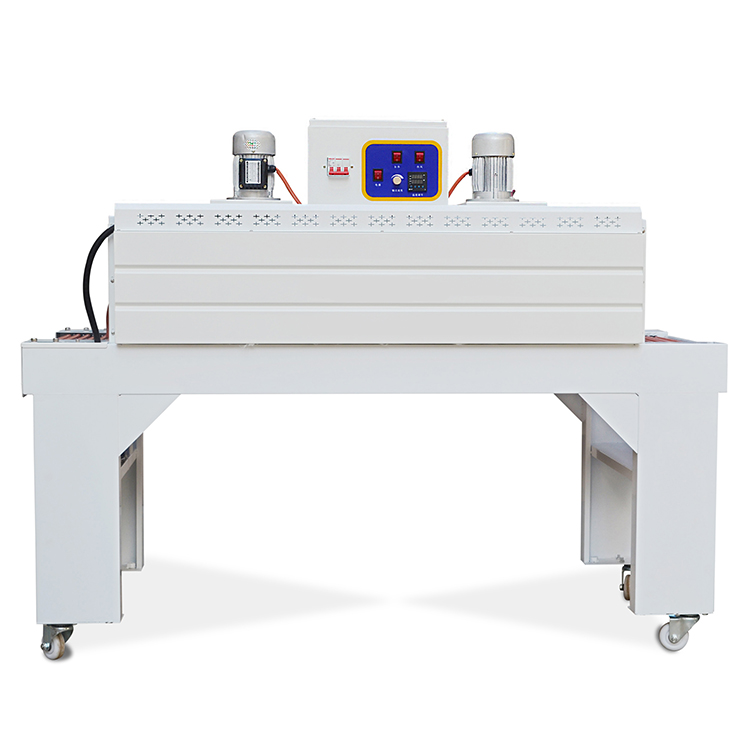

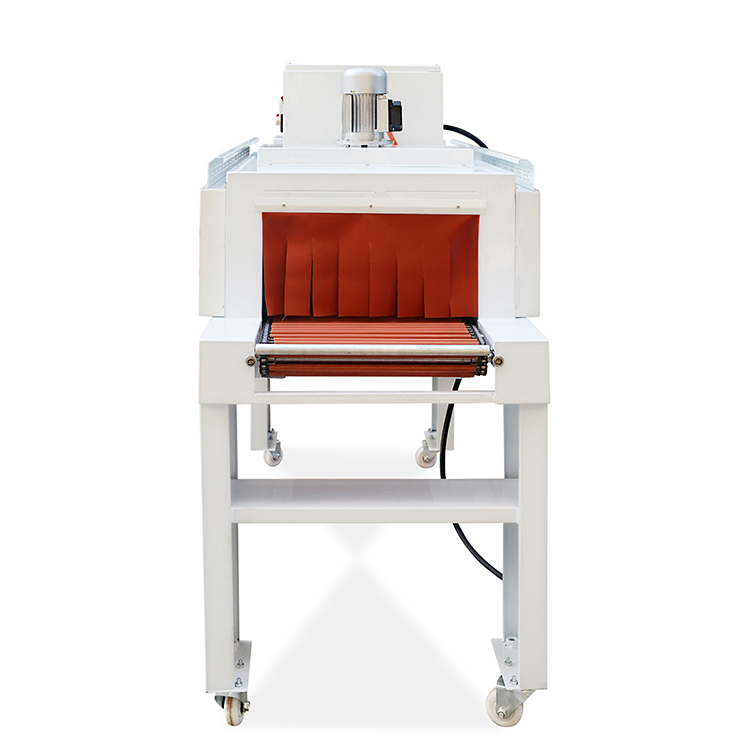

Shrinking machine BS-4522N BS-5530N BS-7530N
Features:

At present, the domestic new automatic continuous shrinkage packaging equipment, using heat pipe heating, energy saving (energy saving more than 15%); Shrinkage temperature and motor drive speed are stable and adjustable with wide adjustment range. Original jet device. Therefore, this produc...

Get a quote for free

Performance feature:


  • * At present, the domestic new automatic continuous shrinkage packaging equipment, using heat pipe heating, power saving (power saving more than 15%);

  • * The shrinkage temperature and motor driving speed are stable and adjustable with a wide range of adjustment;

  • * Original jet device. Therefore, this product has the characteristics of advanced design, stable and reliable performance, good packaging shrinkage effect, novel and beautiful structure, convenient operation and maintenance, and the service life of the product is obviously improved compared with similar products.

  • * Elongated jet thermal shrinkable packaging machine is suitable for shrinkable packaging of PVC, POF, PP and other shrinkable films. Especially suitable for POF shrink wrap.

  • * Top hot steam injection is adopted


Application area:


Suitable for cans, glass bottles, beer, mineral water and other large quantities of automatic shrink packaging items, but also used in wood, steel ceramics, household appliances, computers and other industries.



Technical parameters:


model
BS-4522NBS-5530NBS-7530N
power voltage220/380V 50/60HZ three phase
power10kw
15kw18kw
speed
0-15m/min0-15m/min0-15m/min
channel size1200*450*220mm
1500*550*220mm1800*750*300mm
weight capacity≤30kg≤30kg≤30kg
machine size1600*660*1350mm1900*900*1500mm2200*1050*1450mm
machine weight140kg180kg350kg
shrink filmPVC POF PPPVC POF PPPVC POF PP
