Model:
LARGE BOX TYPE, BAG VERTICAL PACKAGING MACHINE (HOST)
Features:

1. This series of machine sets bag-making, filling, sealing, printing, punching, counting in the body, and adopts servo synchronous belt drawing film with automatic deviation correction function 2. Automatic deviation correction function can save time and film and improve the reliability ...

Get a quote for free

性能特点

MAIN FEATURES


1. This series of machine sets bag-making, filling, sealing, printing, punching, counting in the body, and adopts servo synchronous belt drawing film with automatic deviation correction function

2. Automatic deviation correction function can save time and film and improve the reliability and intelligence of the whole machine

3. PLC control components are international famous brand electric appliances, reliable performance, vertical seal with pneumatic, stable and reliable movement

4. The advanced design ensures that this series of packaging machines are suitable for different industries, which are very convenient for adjustment, operation and maintenance.

It can be used with all kinds of measuring and conveying equipment at home and abroad

5. Suitable for: computer combined scale, semi-automatic feeding device, spiral powder measuring machine, measuring cup measuring machine, liquid filling measuring machine



封口形式

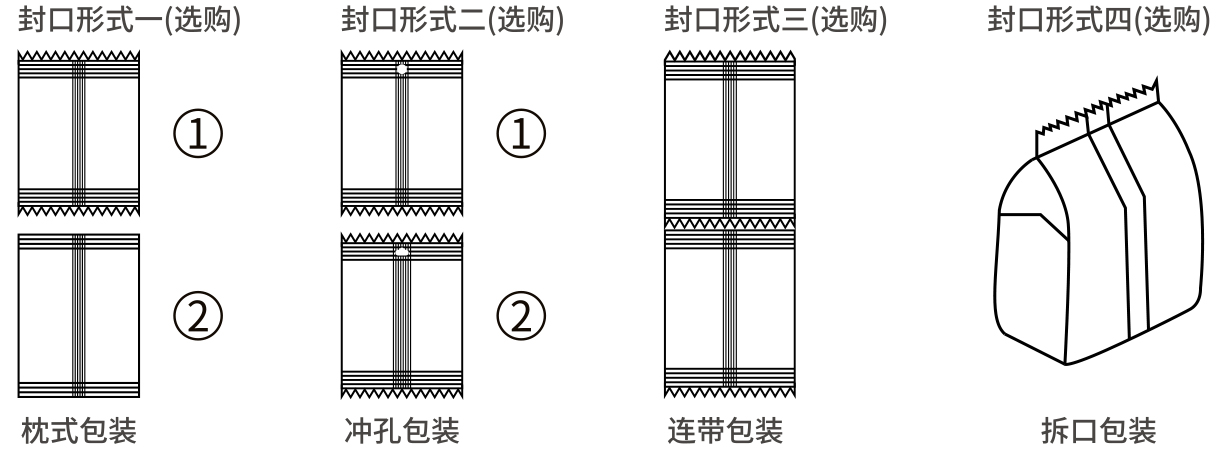

SEALING FORM



TECHNICAL PARAMETER

技术参数


型号

model

420520720

正面宽

front width

Max200

Max250

Max300

制袋长度

Bag length

Max: 300mm

Max: 400mm

Max: 450mm

Z大膜宽

Max film width

420mm

520mm720mm

包装速度

packaging speed

5-50Packages/minute

5-50Packages/minute

5-50Packages/minute

电源类型

power types

3.5kw 220V 50Hz

4kw 220V 50Hz

5kw 220V 50Hz

外形尺寸

boundary dimension

(L)124X (W)110X (H)154cm

(L)162X (W)117X (H)195cm(L)170X (W)136X (H)225cm

注:图文参数供于参考,实际以客户物料为准,详情可咨询客服

Note: The graphic parameters are for reference. Actually, the customer's

materials shall prevail. For details, please contact customer service.
