1. Intelligent photoelectric tracking is adopted to ensure accurate positioning of trademark patterns 2. Complete a series of actions such as bag-making, measuring, filling, sealing, sealing and cutting which are easy to tear and cut, which can be divided and connected, and finished product output automatically 3. Accurate measurement, high efficiency, user-friendly design, easy operation, stable packaging quality, smooth and beautiful appearance
性能特点
MAIN FEATURES
1. Intelligent photoelectric tracking is adopted to ensure accurate positioning of trademark patterns
2. Complete a series of actions such as bag-making, measuring, filling, sealing, sealing and cutting which are easy to tear and cut, which can be divided and connected, and finished product output automatically
3. Accurate measurement, high efficiency, user-friendly design, easy operation, stable packaging quality, smooth and beautiful appearance
适用范围
APPLICATION
It is suitable for automatic packaging of loose, non-sticky granular materials in food, medicine and chemical products
Such as: puffing food, Fried food, peanuts, melon seeds, granule, desiccants, monosodium glutamate, coffee powder, plant seeds, beans, washing powder, etc

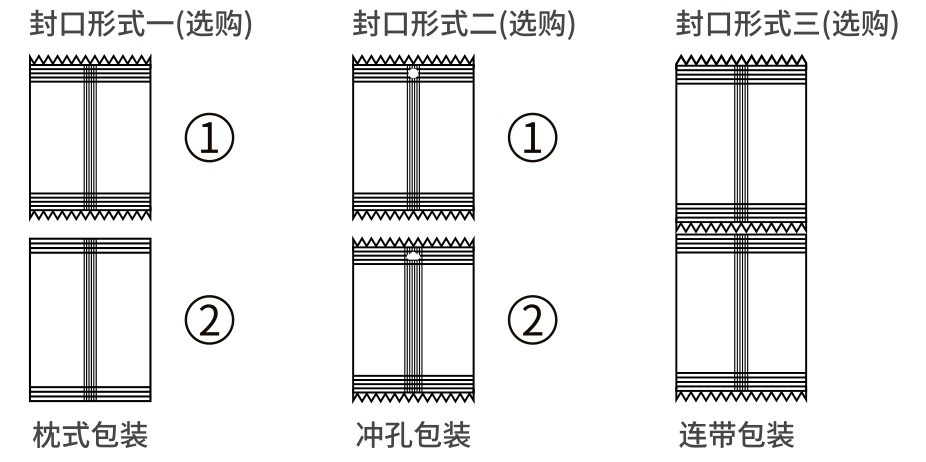

封口形式
SEALING FORM
TECHNICAL PARAMETER
技术参数
型号 model | 320膏体、液体式 320Paste, liquid type |
包装容量 bale capacity | 30-150ml |
灌装精度 Filling accuracy | 士1% |
生产速度 production speed | 5-50Packages/minute |
包装尺寸 package size | (L)5-18cm (W)3-14cm |
电源规格 power source specification | AC220V 50Hz |
功率 power | 1.1KW |
气压 air pressure | 0.4-0.6mpa |
重量 weight | 260kg |
外形尺寸 boundary dimension | 100 X 80X 180cm |
注:图文参数供于参考,实际以客户物料为准,详情可咨询客服
Note: The graphic parameters are for reference. Actually, the customer's
materials shall prevail. For details, please contact customer service.
