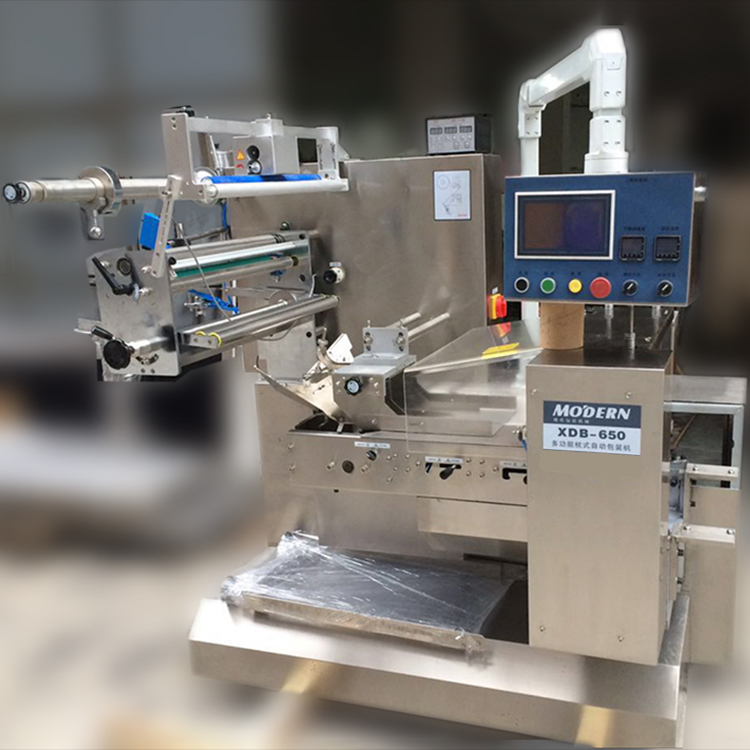

Model: XDB-650
Pillow type automatic packing machine XDB-650
Features:

The machine adopts control three servo motor system, greatly improves the operation efficiency and service life, simplify the traditional mechanical structure. The cantilever mechanism with large screen touch system, simple operation, convenient maintenance. Adjust the paper length can be set and cut, do not adjust the cutting speed,reduce the operating personnel requirements.ln the structure of the automatic roll film,more convenient adjustment.

Get a quote for free





Please contact us and tell us what products you want to pack. We will recommend the most suitable machine for you.



Standard style

SYSTEM SOLUTIONS IN THE FIELD OF PACKAGING MACHINE
DESIGN CUSTOM THINK TANK MANUFACTURERS

Packaging & Shipping


Application:

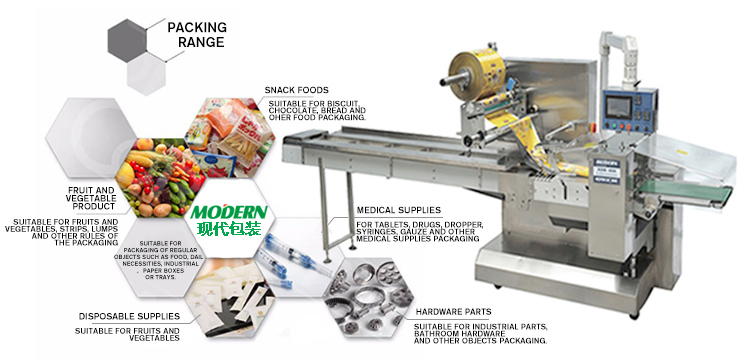

Suitable for food (cake, toast, pizza, bread, biscuit), hardware (small mechanical parts, gears, chain bearings, sockets and switches) daily necessities (paper towels, soap, wet towels, gloves), disposable goods (knife and fork, dishes, toothbrush), medical supplies (mask, syringes, tablets, capsules) . The packaging of multiple products (without supporting boxes) or large single products.

Main performance and structure characteristics:

The machine adopts control three servo motor system, greatly improves the operation efficiency and service life, simplify the traditional mechanical structure.

The cantilever mechanism with large screen touch system, simple operation, convenient maintenance. Adjust the paper length can be set and cut, do not adjust the cutting speed,reduce the operating personnel requirements.ln the structure of the automatic roll film,more convenient adjustment.


Machine model

XDB-650

Motor power

Sealing servo motor: 1.3KW, feeding motor 0.75kw, feeding motor1.0kw, frequency 50HZ

The material of the main body of the fuselage

Stainless steel 201(customizable 304)

Use fastener material

8.8/12.9 GPa

weight

1200KG

Standard size of the fuselage

480X120X170 CM

Suitable packaging film material

Single side heat sealing film material (such as OPP, CPP, OPP composite PE, PET composite PE, etc. monolayer or composite packaging film material)

Packaging film size range, thickness range

Membrane width 700mm
Membrane thickness 0.025mm

Packaging speed

30-180 package/min
